Surface mount silicon signal diode with 1A average rectified current and 400V reverse voltage. Features a 50ns reverse recovery time and 15pF capacitance. Operates across a -55°C to 150°C temperature range. Packaged in SMA for tape and reel distribution. RoHS compliant.
PackageSMA
Capacitance15pF
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay US1G-E3/61T technical specifications.
General
Average Rectified Current
1A
Capacitance
15pF
Package/Case
SMA
Current Rating
1A
Diode Type
RECTIFIER
Forward Current
1A
Height
0.082inch
Lead Free
Lead Free
Length
0.177inch
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Current
10uA
Max Reverse Voltage (DC)
400V
Max Surge Current
30A
Mount
Surface Mount
Output Current
1A
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
30A
Polarity
Standard
Radiation Hardening
No
Reverse Recovery Time
50ns
Reverse Recovery Time-Max
50ns
Reverse Voltage
400V
RoHS Compliant
Yes
DC Rated Voltage
400V
Width
0.11inch
Compliance
RoHS
Compliant
Datasheet
Vishay US1G-E3/61T Datasheet
Download the complete datasheet for Vishay US1G-E3/61T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

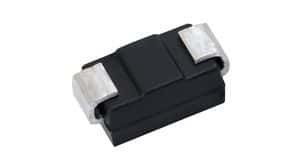

Product Images
