Surface mount signal diode with 1A average rectified current and 1kV reverse voltage. Features 10pF capacitance, 30A peak non-repetitive surge current, and 75ns reverse recovery time. Operates from -55°C to 150°C in an SMA package. RoHS compliant and lead-free.
PackageSMA
Voltage1kV
Current1A
Capacitance10pF
Quick Jump:
Technical Specifications
Vishay US1M-E3/5AT technical specifications.
General
| Average Rectified Current | 1A |
| Capacitance | 10pF |
| Package/Case | SMA |
| Current | 1A |
| Forward Current | 1A |
| Height | 2.09mm |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV |
| Max Reverse Current | 10uA |
| Max Reverse Voltage (DC) | 1kV |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Package Quantity | 7500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 75ns |
| Reverse Voltage | 1kV |
| RoHS Compliant | Yes |
| Voltage | 1kV |
| Width | 2.79mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay US1M-E3/5AT Datasheet
Download the complete datasheet for Vishay US1M-E3/5AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

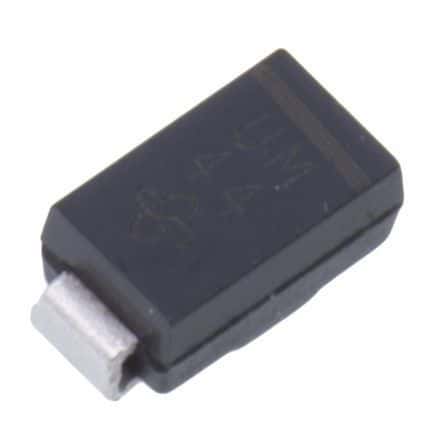

Product Images
