Vishay
V15PN50-M3/86A
Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 50V V(RRM), Silicon, TO-277A, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMPC, 3 PIN
PackageTO-277A
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay V15PN50-M3/86A technical specifications.
General
| Average Rectified Current | 15A |
| Package/Case | TO-277A |
| Forward Current | 15A |
| Max Forward Surge Current (Ifsm) | 200A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 50V |
| Max Reverse Current | 3mA |
| Max Reverse Voltage (DC) | 50V |
| Mount | Surface Mount |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 200A |
| Reverse Voltage (DC) | 50V |
| RoHS Compliant | Yes |
| Series | eSMP®, TMBS® |
| Weight | 0.003527oz |
Compliance
| RoHS | Compliant |
Datasheet
Vishay V15PN50-M3/86A Datasheet
Download the complete datasheet for Vishay V15PN50-M3/86A to view detailed technical specifications.
No datasheet is available for this part.

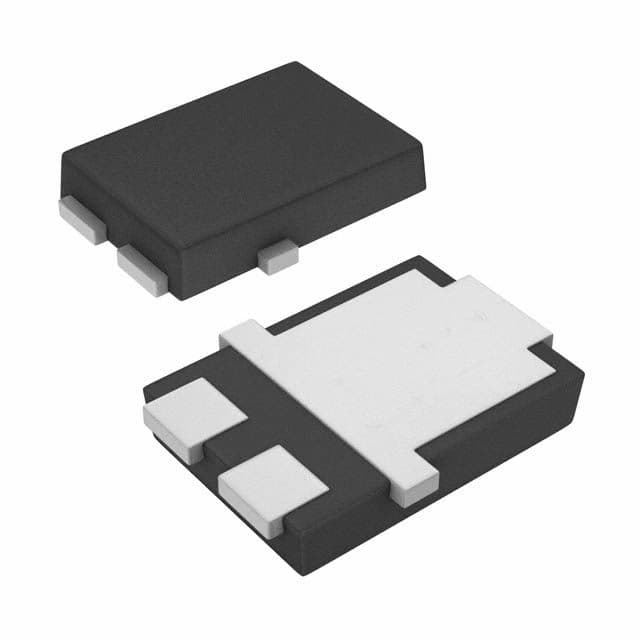

Product Images
