Automotive-grade PIN photodiode chip for surface mount applications, featuring a 940nm wavelength and a 30° viewing angle. This 2-pin SMD component offers a 60V reverse voltage, 50mA forward current, and a 100ns response time. Operating within a -40°C to 100°C temperature range, it has a maximum power dissipation of 215mW and is supplied in tape and reel packaging.
PackageSMD/SMT
MountingSurface Mount, PCB
Power215mW
Quick Jump:
Technical Specifications
Vishay VEMD2000X01 technical specifications.
General
Package/Case
SMD/SMT
Diode Type
PIN
Fall Time
100ns
Forward Current
50mA
Height
2.77mm
Length
2.3mm
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Power Dissipation
215mW
Max Reverse Voltage (DC)
60V
Mount
Surface Mount, PCB
Packaging
Tape and Reel
Power Dissipation
215mW
Reach SVHC Compliant
Unknown
Response Time
100ns
Reverse Breakdown Voltage
60V
Reverse Voltage (DC)
60V
RoHS Compliant
Yes
Series
Automotive, AEC-Q101
Viewing Angle
30°
Wavelength
940nm
Width
2.3mm
Compliance
RoHS
Compliant
Datasheet
Vishay VEMD2000X01 Datasheet
Download the complete datasheet for Vishay VEMD2000X01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

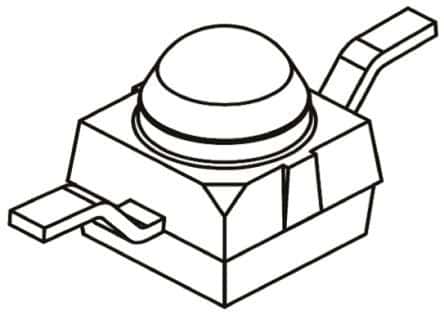

Product Images
