Surface mount NPN phototransistor with a 20V collector-emitter breakdown voltage and 50mA maximum collector current. Features a black, domed lens for top-view orientation and a 70° viewing angle. Operates across a -40°C to 100°C temperature range with 100mW maximum power dissipation. This RoHS compliant component is supplied on tape and reel.
PackageSMD/SMT
MountingSurface Mount
PolarityNPN
Power100mW
Quick Jump:
Technical Specifications
Vishay VEMT2003X01 technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
20V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
20V
Collector-emitter Voltage-Max
20V
Lead Free
Lead Free
Lens Color
Black
Lens Style
Domed
Max Breakdown Voltage
20V
Max Collector Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Power Dissipation
100mW
Mount
Surface Mount
Orientation
Top View
Package Quantity
6000
Packaging
Tape and Reel
Polarity
NPN
Power Dissipation
100mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Automotive, AEC-Q101
Viewing Angle
70°
Wavelength
860nm
Compliance
RoHS
Compliant
Datasheet
Vishay VEMT2003X01 Datasheet
Download the complete datasheet for Vishay VEMT2003X01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

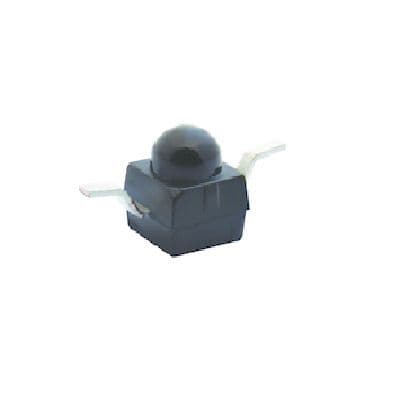

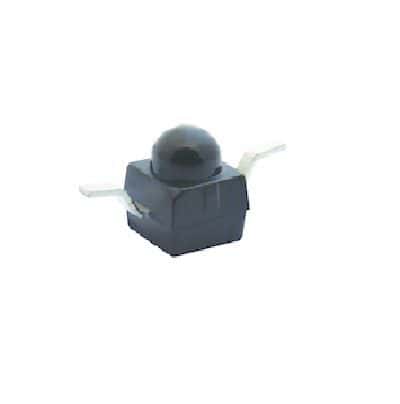

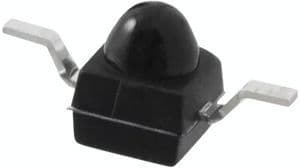

Product Images
