Automotive-grade NPN phototransistor chip for surface mount applications. Features a 20V collector-emitter breakdown voltage and 50mA maximum collector current. Operates across a -40°C to 100°C temperature range with 100mW power dissipation. This 850nm silicon component has a domed, transparent lens and is supplied in tape and reel packaging.
PackageSMD/SMT
MountingSurface Mount
PolarityNPN
Power100mW
Quick Jump:
Technical Specifications
Vishay VEMT2500X01 technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
20V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
20V
Collector-emitter Voltage-Max
20V
Lens Color
Clear
Lens Style
Domed, TRANSPARENT
Max Breakdown Voltage
20V
Max Collector Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Power Dissipation
100mW
Mount
Surface Mount
Number of Elements
1
Orientation
Top View
Package Quantity
6000
Packaging
Tape and Reel
Polarity
NPN
Power Consumption
100mW
Power Dissipation
100mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Automotive, AEC-Q101
Viewing Angle
30°
Wavelength
850nm
Compliance
RoHS
Compliant
Datasheet
Vishay VEMT2500X01 Datasheet
Download the complete datasheet for Vishay VEMT2500X01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

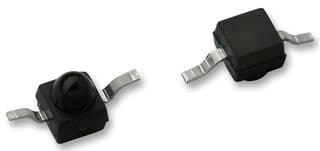

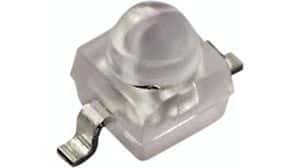

Product Images
