Unidirectional TVS Diode, 192W peak pulse power, designed for transient voltage suppression. Features a 5V working voltage, 6V minimum breakdown voltage, and a maximum clamping voltage of 5V. Offers a low leakage current of 1uA and a capacitance of 76pF. Operates across a temperature range of -40°C to 125°C and is available in a surface mount plastic package.
Capacitance76pF
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay VESD05A1-02V-G-08 technical specifications.
General
Capacitance
76pF
Clamping Voltage-Max
5V
Diode Type
ZENER
Direction
Unidirectional, Bidirectional
Lead Free
Lead Free
Leakage Current
1uA
Max Breakdown Voltage
6.8V
Min Breakdown Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
192W
Mount
Surface Mount
Number of Channels
1
Number of Unidirectional Channels
1
Operating Supply Voltage
5V
Packaging
Tape and Reel
Peak Pulse Current
16A
Peak Pulse Power
192W
Power Line Protection
No
Reach SVHC Compliant
Unknown
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Termination
SMD/SMT
Working Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Vishay VESD05A1-02V-G-08 Datasheet
Download the complete datasheet for Vishay VESD05A1-02V-G-08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

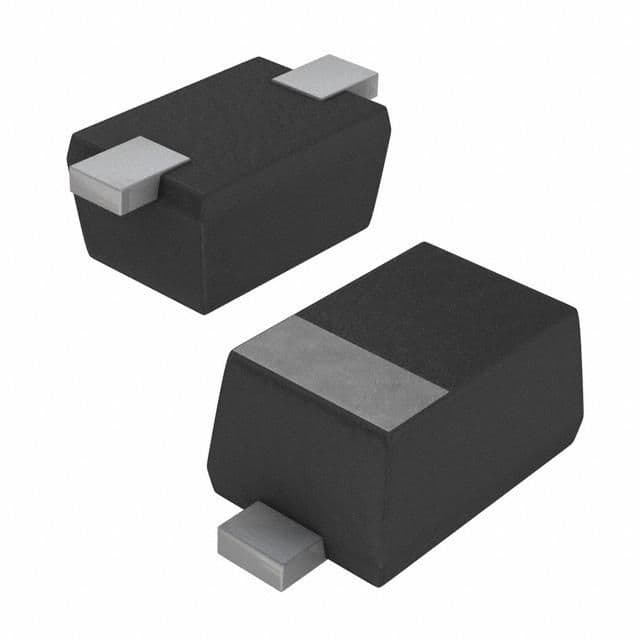

Product Images
