Technical Specifications
Vishay VJ0603Y104KXXAP technical specifications.
General
| Capacitance | 100nF |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | X7R |
| Length | 1.6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | VJ |
| Tolerance | 10% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VJ0603Y104KXXAP Datasheet
Download the complete datasheet for Vishay VJ0603Y104KXXAP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

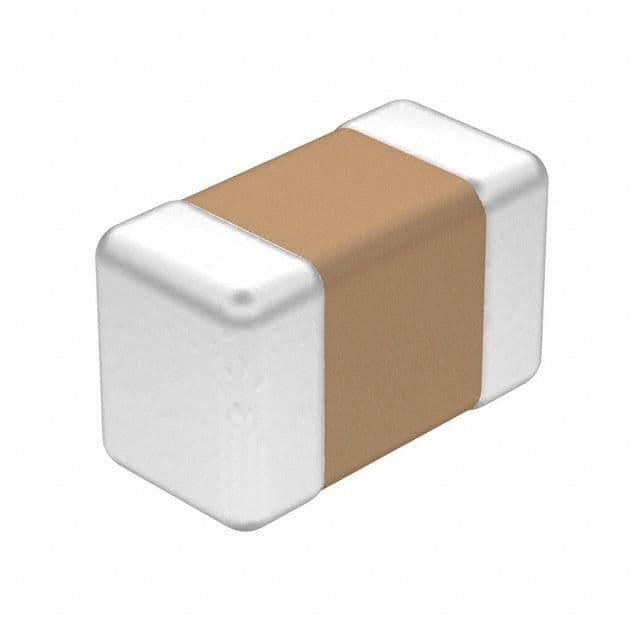

Product Images
