Vishay
VS-12CWQ04FNPBF
DIODE 40 V, SILICON, RECTIFIER DIODE, ROHS COMPLIANT, PLASTIC, SIMILAR TO TO-252AA, DPAK-3, Rectifier Diode
PackageDPAK
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay VS-12CWQ04FNPBF technical specifications.
General
Average Rectified Current
6A
Package/Case
DPAK
Forward Current
12A
Height
2.39mm
Length
6.73mm
Max Forward Surge Current (Ifsm)
320A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
3mA
Max Reverse Leakage Current
3mA
Max Reverse Voltage (DC)
40V
Max Surge Current
550A
Mount
Surface Mount
Package Quantity
75
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
550A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Width
6.22mm
Compliance
RoHS
Compliant
Datasheet
Vishay VS-12CWQ04FNPBF Datasheet
Download the complete datasheet for Vishay VS-12CWQ04FNPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

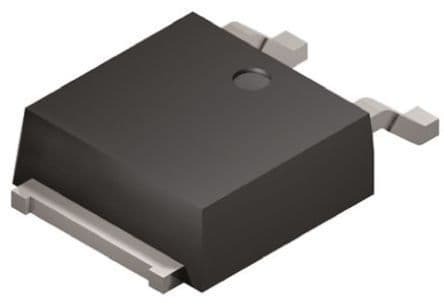

Product Images
