Vishay
VS-12CWQ06FN-M3
DIODE 60 V, SILICON, RECTIFIER DIODE, HALOGEN FREE AND ROHS COMPLIANT, SIMILAR TO TO-252AA, DPAK-3, Rectifier Diode
PackageTO-252-3
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay VS-12CWQ06FN-M3 technical specifications.
General
Average Rectified Current
6A
Package/Case
TO-252-3
Forward Current
12A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
60V
Max Reverse Current
3mA
Max Reverse Voltage (DC)
60V
Mount
Surface Mount
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
320A
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay VS-12CWQ06FN-M3 Datasheet
Download the complete datasheet for Vishay VS-12CWQ06FN-M3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

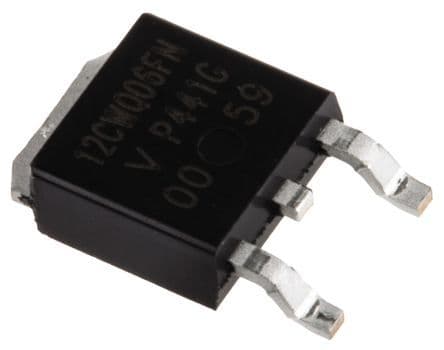

Product Images
