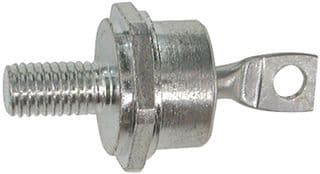

The VS-1N1187RA is a general purpose rectifier diode with a maximum operating temperature of 190°C and a minimum operating temperature of -65°C. It has a maximum repetitive reverse voltage of 300V and a maximum reverse voltage of 300V. The diode can handle a maximum forward current of 40A and a maximum surge current of 800A. It is packaged in a DO-203AB package and is available in a bulk packaging quantity of 100. The VS-1N1187RA is RoHS compliant.
PackageDO-203AB
MountingStud, Chassis
Quick Jump:
Technical Specifications
Vishay VS-1N1187RA technical specifications.
General
| Average Rectified Current | 40A |
| Package/Case | DO-203AB |
| Forward Current | 40A |
| Max Forward Surge Current (Ifsm) | 800A |
| Max Operating Temperature | 190°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 300V |
| Max Reverse Current | 2.5mA |
| Max Reverse Voltage (DC) | 300V |
| Max Surge Current | 800A |
| Mount | Stud, Chassis |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reverse Voltage | 300V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VS-1N1187RA Datasheet
Download the complete datasheet for Vishay VS-1N1187RA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
