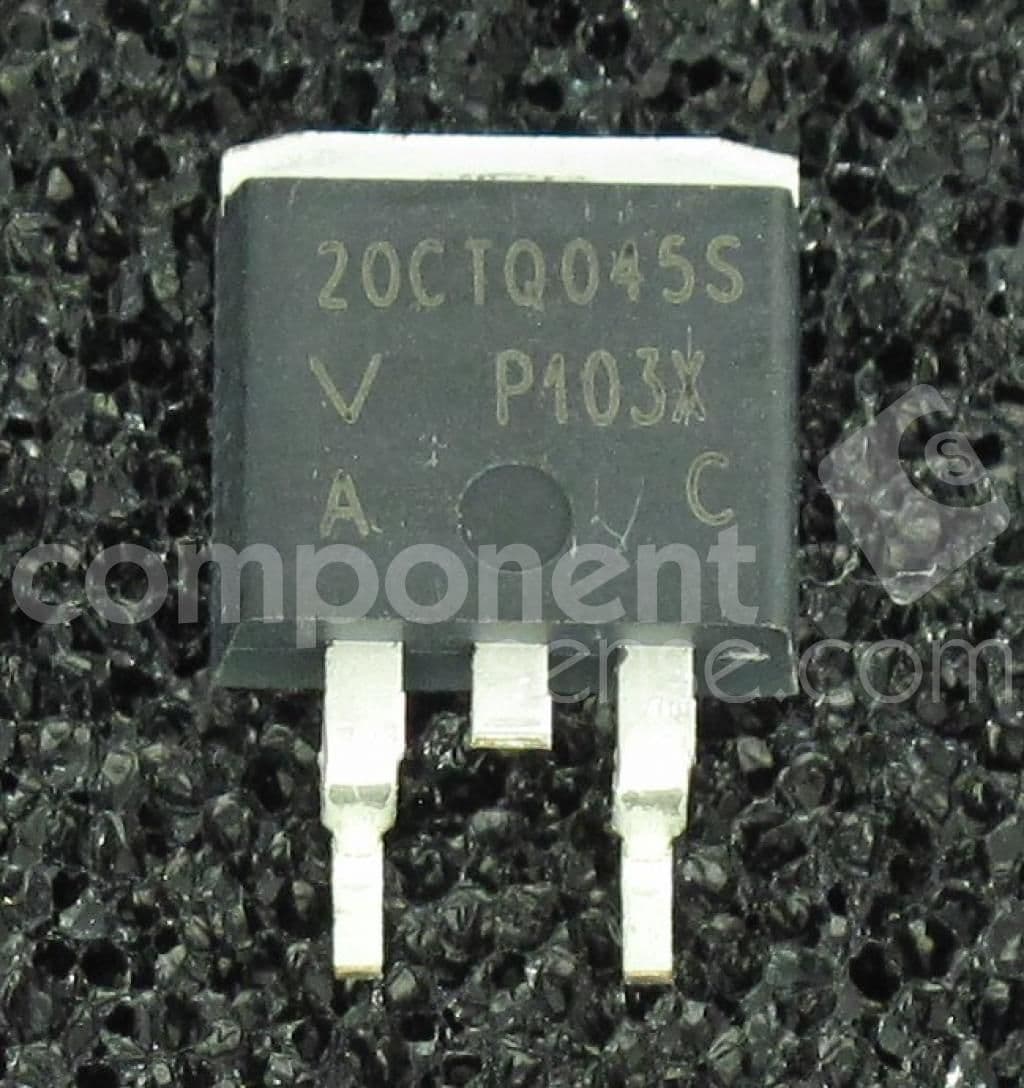

VS-20CTQ045SPBF

Rectifier Diode, Schottky, 1 Phase, 2 Element, 20A, 45V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, TO-220, D2PAK-3

PackageD2PAK

MountingSurface Mount, Through Hole

Quick Jump:

Vishay VS-20CTQ045SPBF technical specifications.

Average Rectified Current	20A
Package/Case	D2PAK
Forward Current	20A
Height	4.83mm
Length	10.67mm
Max Forward Surge Current (Ifsm)	1.06kA
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Max Repetitive Reverse Voltage (Vrrm)	45V
Max Reverse Current	2mA
Max Reverse Leakage Current	2mA
Max Reverse Voltage (DC)	45V
Max Surge Current	1.06kA
Mount	Surface Mount, Through Hole
Package Quantity	50
Packaging	Rail/Tube
Peak Non-Repetitive Surge Current	1.06kA
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Width	9.65mm
