Vishay
VS-ETH0806FP-M3
DIODE 8 A, 600 V, SILICON, RECTIFIER DIODE, TO-220, HALOGEN FREE AND ROHS COMPLIANT, TO-220, FULL PACK-2, Rectifier Diode
PackageTO-220-2
MountingThrough Hole, Surface Mount
Quick Jump:
Technical Specifications
Vishay VS-ETH0806FP-M3 technical specifications.
General
Average Rectified Current
8A
Package/Case
TO-220-2
Forward Current
8A
Height
16.07mm
Length
10.36mm
Max Forward Surge Current (Ifsm)
80A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
20nA
Max Reverse Voltage (DC)
600V
Max Surge Current
80A
Mount
Through Hole, Surface Mount
Package Quantity
50
Packaging
Bulk
Peak Non-Repetitive Surge Current
80A
Reach SVHC Compliant
Unknown
Reverse Recovery Time
21ns
Reverse Voltage
600V
RoHS Compliant
Yes
Series
FRED Pt®
Width
4.93mm
Compliance
RoHS
Compliant
Datasheet
Vishay VS-ETH0806FP-M3 Datasheet
Download the complete datasheet for Vishay VS-ETH0806FP-M3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

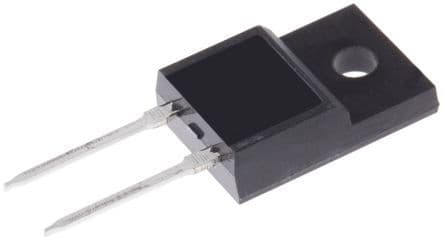

Product Images
