Rectifier Diode with 10A average rectified current and 200V repetitive reverse voltage. Features a TO-220AB through-hole mount package, 100A maximum surge current, and a reverse recovery time of 35ns. Operates across a wide temperature range from -65°C to 175°C. This RoHS compliant component is designed for general-purpose rectification.
PackageTO-220AB
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay VS-MUR2020CTPBF technical specifications.
General
| Average Rectified Current | 10A |
| Package/Case | TO-220AB |
| Forward Current | 10A |
| Height | 0.6inch |
| Lead Free | Lead Free |
| Length | 0.413inch |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 15uA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 100A |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 100A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 35ns |
| Reverse Voltage | 200V |
| RoHS Compliant | Yes |
| Series | FRED Pt® |
| Width | 0.183inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VS-MUR2020CTPBF Datasheet
Download the complete datasheet for Vishay VS-MUR2020CTPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

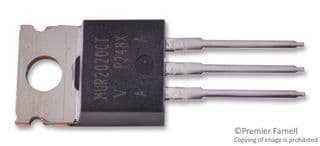

Product Images
