Infrared (IR) LED emitter featuring an 850nm wavelength and 100mW/sr radiant intensity. This surface mount component offers a 20° viewing angle and a dome, diffused, colorless, circular lens. Designed for top view orientation, it operates with a 100mA forward current and a 5V reverse voltage. The SMD/SMT package measures 2.3mm in depth and length, with a fall time of 10ns. It is RoHS compliant and operates within a temperature range of -40°C to 85°C.
PackageSMD/SMT
MountingSurface Mount
Power190mW
Quick Jump:
Technical Specifications
Vishay VSMY2850G technical specifications.
General
Package/Case
SMD/SMT
Depth
2.3mm
Fall Time
10ns
Forward Current
100mA
Lead Free
Lead Free
Length
2.3mm
Lens Style
Dome, Diffused, Colorless, Circular
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Elements
1
Number of LEDs
1
Orientation
Top View
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
190mW
Reach SVHC Compliant
Unknown
Reverse Voltage
5V
RoHS Compliant
Yes
Touchscreen
Infrared (IR)
Viewing Angle
20°
Wavelength
850nm
Compliance
RoHS
Compliant
Datasheet
Vishay VSMY2850G Datasheet
Download the complete datasheet for Vishay VSMY2850G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

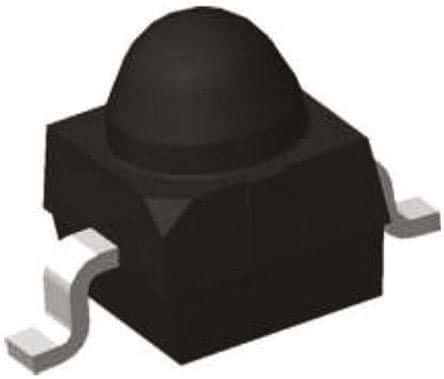

Product Images
