Vishay
WSL1206R1200FEA18

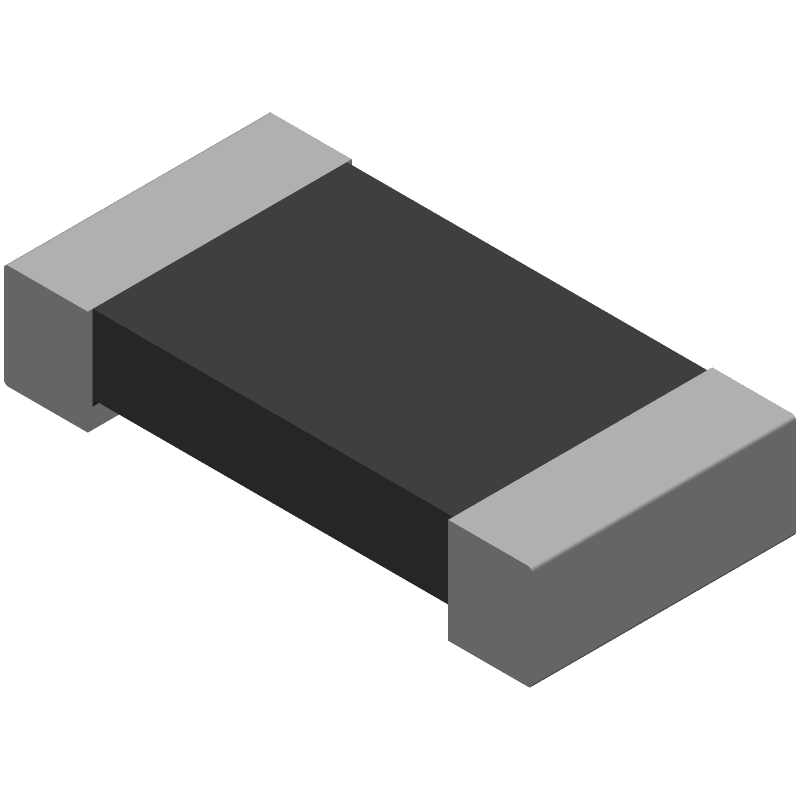

RESISTOR, CURRENT SENSE, METAL STRIP, 0.5 W, 1 %, 75 ppm, 0.12 ohm, SURFACE MOUNT, 1206, CHIP, ROHS COMPLIANT
Package1206
Resistance120mR
Quick Jump:
Technical Specifications
Vishay WSL1206R1200FEA18 technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Contact Plating | Tin, Matte |
| Features | Moisture Resistant, Automotive AEC-Q200 |
| Height | 635um |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 170°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Resistance | 120mR |
| RoHS Compliant | Yes |
| Series | WSL-HP |
| Tolerance | 1% |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay WSL1206R1200FEA18 Datasheet
Download the complete datasheet for Vishay WSL1206R1200FEA18 to view detailed technical specifications.
No datasheet is available for this part.
