Surface mount metal strip current sense resistor, 0.5W power rating, 1% resistance tolerance, and 75 ppm temperature coefficient. Features 40mΩ resistance, 140mV voltage rating, and operates within a -65°C to 170°C temperature range. Constructed with a 2010 case code, tin matte plating, and moisture-resistant properties. This lead-free, RoHS-compliant component is supplied on tape and reel.
Package2010
Resistance40mR
Voltage Rating140mV
Quick Jump:
Technical Specifications
Vishay WSL2010R0400FEA technical specifications.
General
Case Code (Imperial)
2010
Case Code (Metric)
5025
Package/Case
2010
Construction
Rectangular
Contact Plating
Tin, Matte
Depth
2.54mm
Features
Moisture Resistant
Height
0.035inch
Lead Free
Lead Free
Length
0.2inch
Max Operating Temperature
170°C
Military Standard
Not
Min Operating Temperature
-65°C
Max Power Dissipation
500mW
Number of Terminations
2
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
40mR
Resistance Tolerance
1%
Resistor Type
Metal Strip
RoHS Compliant
Yes
Series
WSL
Size Code
2010
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
140mV
Weight
0.001372oz
Width
2.5mm
Compliance
RoHS
Not Compliant
Datasheet
Vishay WSL2010R0400FEA Datasheet
Download the complete datasheet for Vishay WSL2010R0400FEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

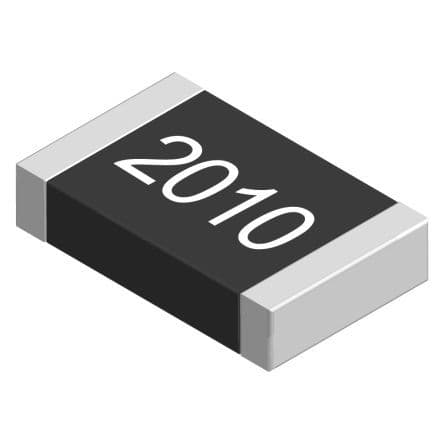

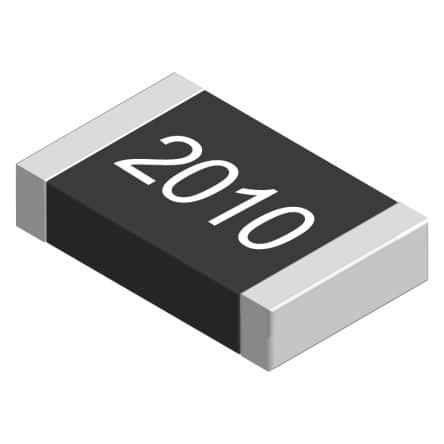

Product Images
