Surface mount metal strip current sense resistor, 1W power rating, 15mΩ resistance with 1% tolerance. Features a 1206 case size, operating temperature range of -65°C to 170°C, and 75 ppm temperature coefficient. Constructed with a rectangular chip, it offers moisture resistance and is lead-free and RoHS compliant.
Package1206
Resistance15mR
Quick Jump:
Technical Specifications
Vishay WSLP1206R0150FEA technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Rectangular |
| Depth | 1.6mm |
| Features | Moisture Resistant |
| Height | 0.035inch |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 170°C |
| Max Power Dissipation | 1W |
| Military Standard | Not |
| Min Operating Temperature | -65°C |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 15mR |
| Resistance Tolerance | 1% |
| Resistor Type | Metal Strip |
| RoHS Compliant | Yes |
| Series | WSLP |
| Size Code | 1206 |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Weight | 0.000571oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay WSLP1206R0150FEA Datasheet
Download the complete datasheet for Vishay WSLP1206R0150FEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

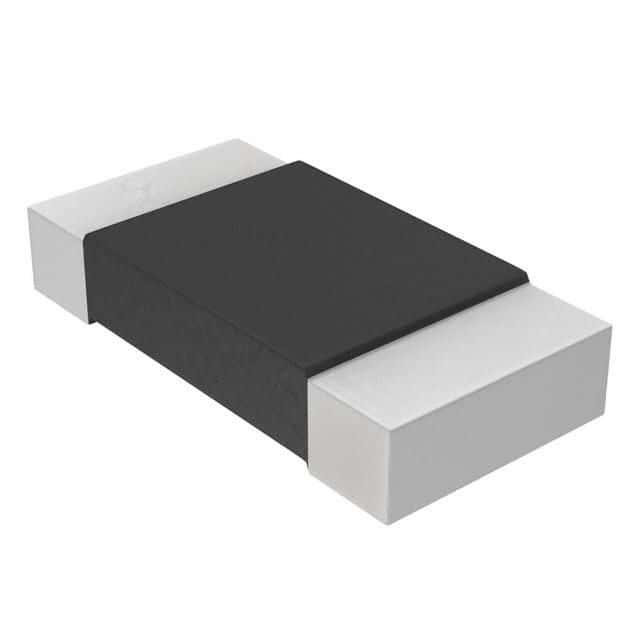

Product Images
