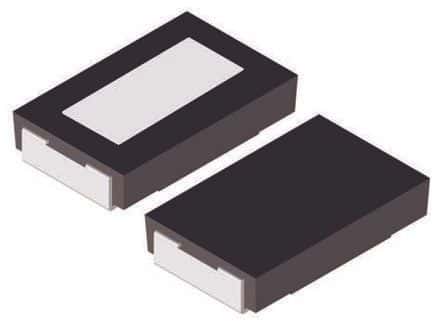

Surface mount metal strip current sense resistor with 0.1 ohm resistance and 1% tolerance. Features 2W power dissipation, 75 ppm TCR, and a 4527 case code. Operating temperature range from -65°C to 275°C. Constructed with tin/silver contact plating, it offers moisture resistance and automotive AEC-Q200 qualification.
Package4527
Resistance100mR
Voltage Rating440mV
Quick Jump:
Technical Specifications
Vishay WSR2R1000FEA technical specifications.
General
Case Code (Imperial)
4527
Package/Case
4527
Construction
Rectangular
Contact Plating
Tin, Silver
Depth
6.98mm
Features
Moisture Resistant, Automotive AEC-Q200
Height
2.41mm
Lead Free
Lead Free
Length
11.56mm
Max Operating Temperature
275°C
Military Standard
Not
Min Operating Temperature
-65°C
Max Power Dissipation
2W
Number of Terminations
2
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
100mR
Resistance Tolerance
1%
Resistor Type
Metal Strip, Metal Film
RoHS Compliant
Yes
Series
WSR
Size Code
4527
Technology
METAL STRIP
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
440mV
Width
6.98mm
Compliance
RoHS
Compliant
Datasheet
Vishay WSR2R1000FEA Datasheet
Download the complete datasheet for Vishay WSR2R1000FEA to view detailed technical specifications.
