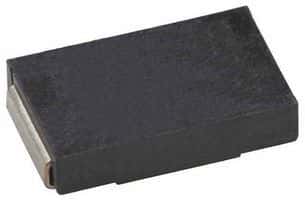

Surface mount metal strip current sense resistor, 3W power rating, 1% resistance tolerance, and 0.004 ohm resistance. Features include moisture resistance, automotive AEC-Q200 qualification, and anti-sulfur protection. Operates across a wide temperature range from -65°C to 275°C. Housed in a 4527 case code with tin/silver contact plating.
Package4527
Resistance4mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay WSR34L000FEA technical specifications.
General
Case Code (Imperial)
4527
Package/Case
4527
Contact Plating
Tin, Silver
Features
Moisture Resistant, Automotive AEC-Q200, Anti-Sulfur
Height
0.1inch
Lead Free
Lead Free
Length
0.455inch
Max Operating Temperature
275°C
Min Operating Temperature
-65°C
Max Power Dissipation
3W
Mount
Surface Mount
Number of Terminations
2
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
4mR
Resistance Tolerance
1%
Resistor Type
Metal Strip
RoHS Compliant
Yes
Series
WSR
Size Code
4527
Termination
SMD/SMT
Tolerance
1%
Width
6.98mm
Compliance
RoHS
Compliant
Datasheet
Vishay WSR34L000FEA Datasheet
Download the complete datasheet for Vishay WSR34L000FEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
