Vishay
ZM4734A-GS08
Zener Diode, 5.6V V(Z), 5%, 1W, Silicon, Unidirectional, DO-213AB, HALOGEN FREE AND ROHS COMPLIANT, GLASS, MELF-2
PackageDO-213AB
Voltage Rating5.6V
MountingSurface Mount
Power1W
Quick Jump:
Technical Specifications
Vishay ZM4734A-GS08 technical specifications.
General
Package/Case
DO-213AB
Diameter
2.6mm
Diode Type
ZENER
Impedance
5R
Lead Free
Lead Free
Length
0.204inch
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Power Dissipation
1W
Max Reverse Current
10uA
Max Reverse Leakage Current
10uA
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
1W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Tolerance
5%
Voltage Tolerance
5%
Working Voltage
5.6V
Zener Current
162mA
Zener Voltage
5.6V
Compliance
RoHS
Compliant
Datasheet
Vishay ZM4734A-GS08 Datasheet
Download the complete datasheet for Vishay ZM4734A-GS08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

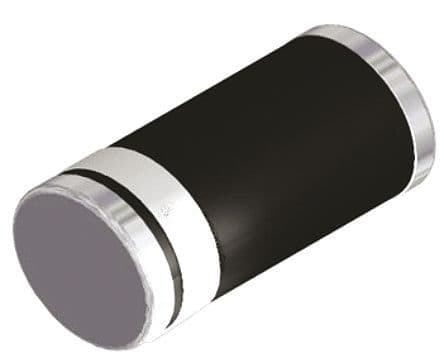

Product Images
