General purpose electromechanical relay featuring a 12VDC coil with 847 Ohm resistance and 14mA coil current, consuming 170mW. This SPDT relay offers a 6A contact current rating with Tin, Silver contact material and a 28mm length, 5mm width, and 15mm depth. Designed for plug-in or through-hole mounting with PC pin termination, it operates within a -40°C to 85°C temperature range and boasts a UL94 V-0 flammability rating. Approvals include VDE and cURus, with operate and release times of 5ms and 2.5ms respectively.
Voltage Rating12V
Current Rating14mA
MountingThrough Hole, Plug-In
Quick Jump:
Technical Specifications
Weidmuller 4061610000 technical specifications.
General
| Approvals | VDE, cURus |
| Coil Current | 14mA |
| Coil Power | 170mW |
| Coil Resistance | 847R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 6A |
| Contact Material | Tin, Silver |
| Contact Type | 1 change-over |
| Current Rating | 14mA |
| Depth | 15mm |
| Flammability Rating | UL94 V-0 |
| Height | 28mm |
| Length | 28mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Plug-In |
| Number of Contacts | 1 |
| Operate Time | 5ms |
| Package Quantity | 1 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Release Time | 2.5ms |
| RoHS Compliant | No |
| Series | RSS |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating | 12V |
| Weight | 5g |
| Width | 5mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Weidmuller 4061610000 Datasheet
Download the complete datasheet for Weidmuller 4061610000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

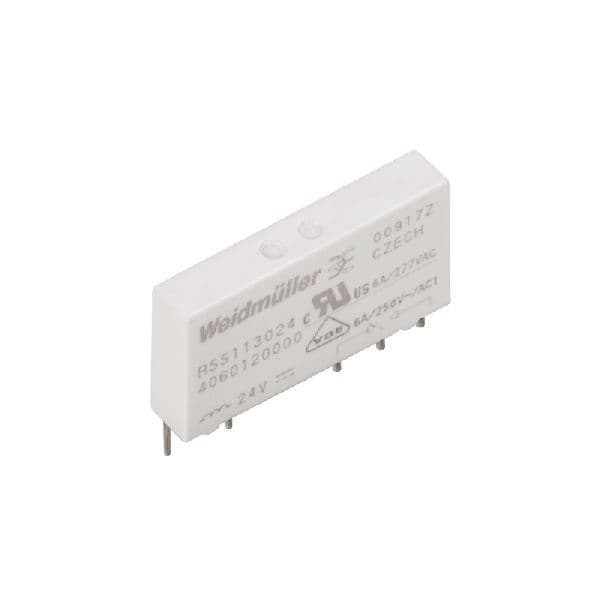

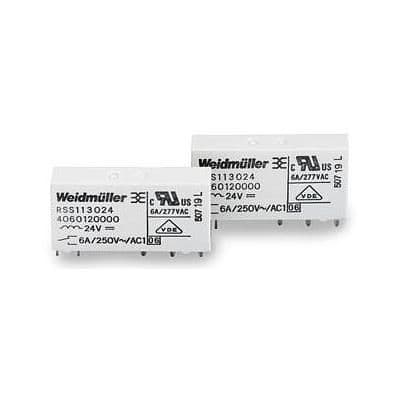

Product Images
