Weidmuller
8467470000
Electromechanical Relay 110VDC 6A SPDT( (6mm 63.2mm 91mm)) DIN Rail Discrete Relay
Voltage Rating300V
Current Rating2.85mA
MountingDIN Rail
Quick Jump:
Technical Specifications
Weidmuller 8467470000 technical specifications.
General
| Approvals | CE |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 110V |
| Contact Current Rating | 6A |
| Contact Material | Tin, Silver |
| Current Rating | 2.85mA |
| Depth | 63.2mm |
| Height | 91mm |
| Lead Free | Lead Free |
| Length | 91mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -25°C |
| Mount | DIN Rail |
| Number of Contacts | 1 |
| Operate Time | 5ms |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | No |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating | 300V |
| Width | 6mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Weidmuller 8467470000 Datasheet
Download the complete datasheet for Weidmuller 8467470000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

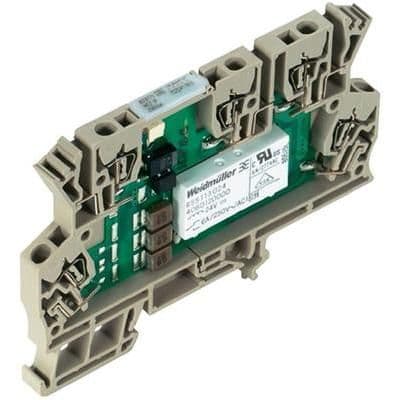

Product Images
