Surface mount tactile switch featuring a 6.2mm x 6.2mm footprint and 5mm height. This non-illuminated or illuminated component offers a 160gf operating force and 0.25mm travel. Constructed with a polymer actuator and stainless steel contacts, it provides a 50mA current rating and a mechanical life of 1,000,000 cycles. Termination is via gull wing leads, and the switch function is Off-Mom (SPST).
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 430182050816 technical specifications.
General
Actuator Length
1.6mm
Actuator Material
Polymer, Liquid Crystal Polymer
Actuator Type
Standard
Contact Current Rating
50mA
Contact Material
Stainless Steel, Steel
Contact Type
1 maker
Current Rating
50mA
Height
5mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
6.2mm
Max Operating Temperature
85°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-40°C
Mount
Surface Mount
Operating Force
160gf
Packaging
Cut Tape
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
WS-TASV
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 430182050816 Datasheet
Download the complete datasheet for Wurth Electronics 430182050816 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

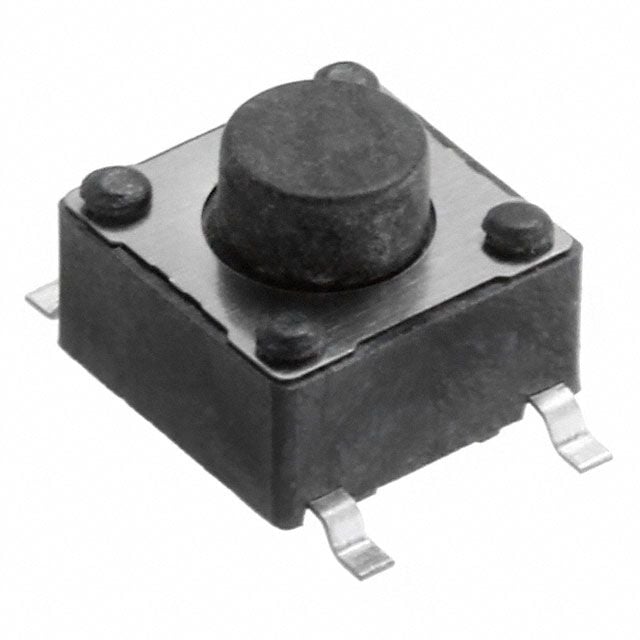

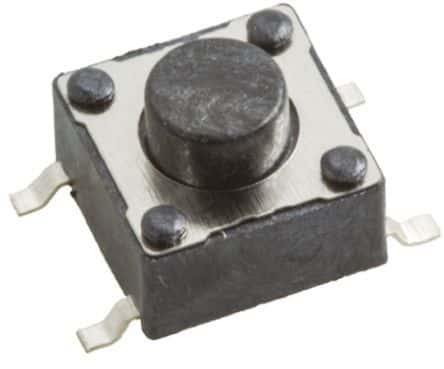

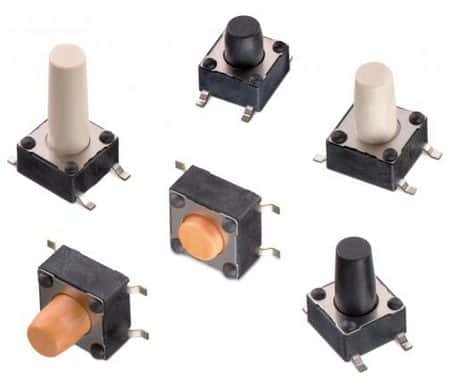

Product Images
