Tactile switch featuring a round, non-illuminated button with a standard actuator. This SPST, normally open component offers a 50mA current rating at 12VDC and a mechanical life of 1,000,000 cycles. Designed for surface mount (SMD/SMT) applications, it has a 1.57N operating force, 0.25mm switch travel, and a 0.5mm actuator length. Constructed with stainless steel and steel contacts plated in silver, it operates within a temperature range of -40°C to 85°C.
Voltage Rating12V
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 430481025816 technical specifications.
General
Actuator Length
0.5mm
Actuator Material
Polymer, Liquid Crystal Polymer
Actuator Type
Standard
Color
Black
Contact Current Rating
50mA
Contact Material
Stainless Steel, Steel
Contact Plating
Silver
Contact Type
1 maker
Current Rating
50mA
Height
2.5mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
6.2mm
Max Operating Temperature
85°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-40°C
Mount
Surface Mount
Operating Force
160gf
Packaging
Cut Tape
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
WS-TASV
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
SMD/SMT
Throw Configuration
SPST
Voltage Rating
12V
DC Rated Voltage
12V
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 430481025816 Datasheet
Download the complete datasheet for Wurth Electronics 430481025816 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

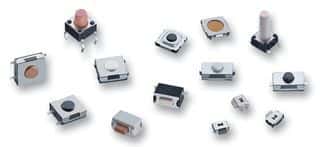

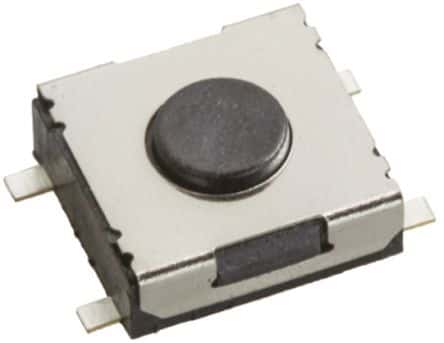

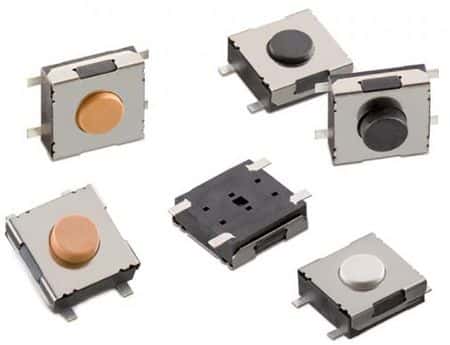

Product Images
