Wurth Electronics
618025231421
25-Contact D-Subminiature Connector, 125V, 3A, Through Hole Mount, -40°C to 85°C
This D-Subminiature connector features 25 contacts with a current rating of 3A and a voltage rating of 125V. It has a right-angle orientation and a pitch of 2.84mm. The connector is designed for through-hole mounting and has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is compliant with RoHS regulations and is suitable for use in a variety of applications.
Voltage Rating125V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Wurth Electronics 618025231421 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 3A |
| Depth | 20.5mm |
| Gender | Male |
| Insulation Material | PBT |
| Length | 53.1mm |
| Mating Cycles | 50 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 25 |
| Number of Rows | 2 |
| Operating Supply Voltage | 125V |
| Orientation | Right Angle |
| Pitch | 2.84mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 618 |
| Termination | SMD/SMT |
| Voltage Rating | 125V |
| Width | 12.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 618025231421 Datasheet
Download the complete datasheet for Wurth Electronics 618025231421 to view detailed technical specifications.
No datasheet is available for this part.

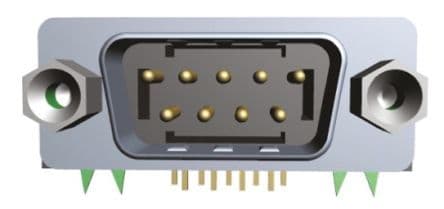

Product Images
