Package0201
Current Rating150mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Wurth Electronics 742692005 technical specifications.
General
| Case Code (Imperial) | 0201 |
| Case Code (Metric) | 0603 |
| Package/Case | 0201 |
| Current Rating | 150mA |
| DC Resistance (DCR) | 900mR |
| Height | 0.013inch |
| Impedance | 300R |
| Length | 0.024inch |
| Max Current Rating | 150mA |
| Max DC Current | 150mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WE-TMSB |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Width | 0.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 742692005 Datasheet
Download the complete datasheet for Wurth Electronics 742692005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

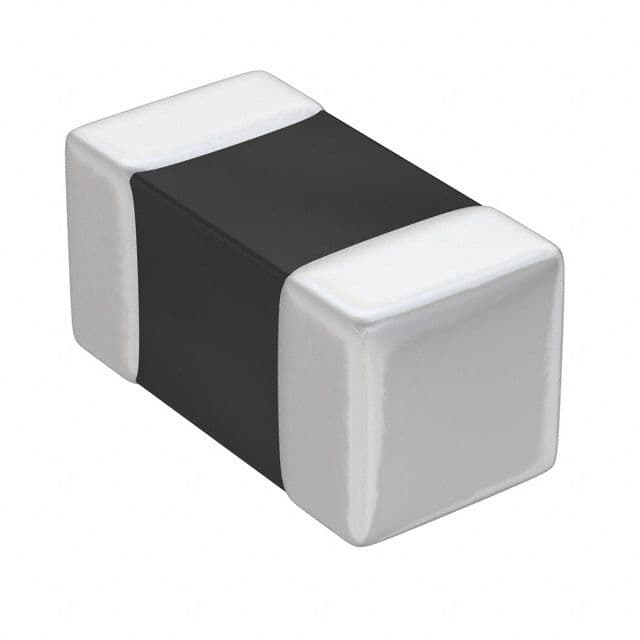

Product Images
