Surface mount fixed inductor featuring 330µH inductance with a 30% tolerance, designed for power applications. This shielded wirewound component utilizes a ferrite core and offers a current rating of 600mA (RMS and Max DC). It exhibits a DC resistance of 1Ω and a saturation current of 700mA, with a self-resonant frequency of 6MHz. Operating across a temperature range of -40°C to 125°C, it is supplied in tape and reel packaging.
PackageNonstandard
Current Rating600mA
MountingSurface Mount
Inductance330uH
Quick Jump:
Technical Specifications
Wurth Electronics 744066331 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 600mA |
| DC Resistance (DCR) | 1R |
| Depth | 10mm |
| Height | 3.8mm |
| Height - Seated (Max) | 0.161inch |
| Inductance | 330uH |
| Inductance Tolerance | 30% |
| Length | 10mm |
| Max DC Current | 600mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 600mA |
| RoHS Compliant | Yes |
| Saturation Current | 700mA |
| Self Resonant Frequency | 6MHz |
| Series | WE-TPC |
| Series Resistance | 1R |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Weight | 0.044904oz |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744066331 Datasheet
Download the complete datasheet for Wurth Electronics 744066331 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

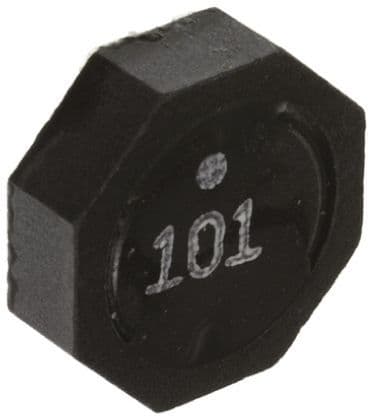

Product Images
