Wurth Electronics
7447452221

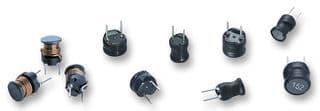

General Purpose Inductor, 220uH, 10%, 1 Element, Ferrite-Core, ROHS COMPLIANT
PackageRadial
MountingThrough Hole
Inductance220uH
Quick Jump:
Technical Specifications
Wurth Electronics 7447452221 technical specifications.
General
Package/Case
Radial
Core Material
Ferrite
DC Resistance (DCR)
290mR
Diameter
9.5mm
Inductance
220uH
Inductance Tolerance
10%
Lead Pitch
5mm
Length
13.5mm
Max DC Current
1.2A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Through Hole
Packaging
Tray
Reach SVHC Compliant
Unknown
RMS Current (Irms)
1.2A
RoHS Compliant
Yes
Saturation Current
1.05A
Self Resonant Frequency
3.1MHz
Series
WE-TI
Shielding
Unshielded
Termination
Radial
Test Frequency
1kHz
Tolerance
10%
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 7447452221 Datasheet
Download the complete datasheet for Wurth Electronics 7447452221 to view detailed technical specifications.
