Surface mount fixed inductor featuring 27nH inductance with a 5% tolerance, designed for RF applications up to 500MHz. This wirewound ceramic component offers a 55 Q-factor and a maximum DC current rating of 500mA. It has a DC resistance of 250mR and is housed in an 0805 (2012 metric) case, suitable for tape and reel packaging. Operating temperature range is -40°C to 125°C.
Frequency500MHz
Package0805
Resistance220mR
Current Rating500mA
Quick Jump:
Technical Specifications
Wurth Electronics 744760127C technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Core Material
Ceramic
Current Rating
500mA
DC Resistance (DCR)
250mR
Depth
1.7mm
Frequency
500MHz
Height
1.28mm
Inductance
27nH
Inductance Tolerance
5%
Inductor Type
Multilayer
Length
2.28mm
Material
Ceramic
Max DC Current
500mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
55
Reach SVHC Compliant
Unknown
Resistance
220mR
RoHS Compliant
Yes
Sample Rate (Hz)
250MHz
Self Resonant Frequency
2.5GHz
Series
WE-KI
Series Resistance
250mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
500MHz
Tolerance
5%
Weight
0.001129oz
Width
1.7mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 744760127C Datasheet
Download the complete datasheet for Wurth Electronics 744760127C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

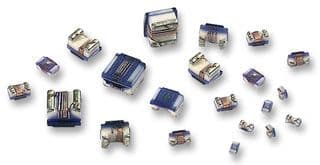

Product Images
