Surface mount wirewound RF chip inductor with 120nH inductance and 5% tolerance. Features a ceramic core, 400mA current rating, and 510mΩ DC resistance. Operates across a wide temperature range from -40°C to 125°C, with a Q factor of 35 at 150MHz and a self-resonant frequency of 1.1GHz. Housed in an 0805 (2012 metric) case, this unshielded component is supplied on tape and reel.
Frequency250MHz
PackageNonstandard
Resistance460mR
Current Rating400mA
Quick Jump:
Technical Specifications
Wurth Electronics 744760212C technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
Nonstandard
Core Material
Ceramic
Current Rating
400mA
DC Resistance (DCR)
510mR
Depth
1.7mm
Frequency
250MHz
Height
1.28mm
Height - Seated (Max)
0.058inch
Inductance
120nH
Inductance Tolerance
5%
Inductor Type
Multilayer
Length
2.28mm
Material
Ceramic
Max DC Current
400mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Q Factor
35
Reach SVHC Compliant
Unknown
Resistance
460mR
RoHS Compliant
Yes
Sample Rate (Hz)
150MHz
Self Resonant Frequency
1.1GHz
Series
WE-KI
Series Resistance
510mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
250MHz
Tolerance
5%
Weight
0.001129oz
Width
1.7mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 744760212C Datasheet
Download the complete datasheet for Wurth Electronics 744760212C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

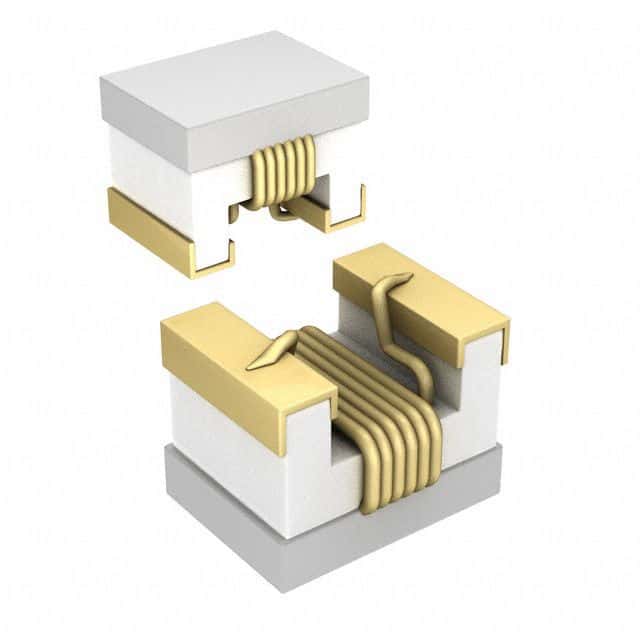

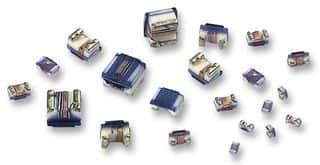

Product Images
