Surface mount wirewound RF chip inductor offering 0.047µH inductance with a 5% tolerance. Features a ceramic core and unshielded construction, operating at 200MHz with a Q factor of 35. Rated for 600mA maximum DC current and a low 0.23 Ohm DC resistance. Housed in a compact 0603 (1608 metric) case, this component is RoHS compliant and suitable for operation between -40°C and 125°C.
Frequency200MHz
Package0603
Resistance230mR
Current Rating600mA
Quick Jump:
Technical Specifications
Wurth Electronics 744761147C technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Core Material
Ceramic
Current Rating
600mA
DC Resistance (DCR)
230mR
Depth
1.15mm
Frequency
200MHz
Height
0.9mm
Height - Seated (Max)
0.043inch
Inductance
47nH
Inductance Tolerance
5%
Length
1.65mm
Material
Ceramic
Max DC Current
600mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Q Factor
35
Reach SVHC Compliant
Unknown
Resistance
230mR
RoHS Compliant
Yes
Sample Rate (Hz)
200MHz
Self Resonant Frequency
2GHz
Series
WE-KI
Series Resistance
230mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
200MHz
Tolerance
5%
Weight
0.04g
Width
1.15mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 744761147C Datasheet
Download the complete datasheet for Wurth Electronics 744761147C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

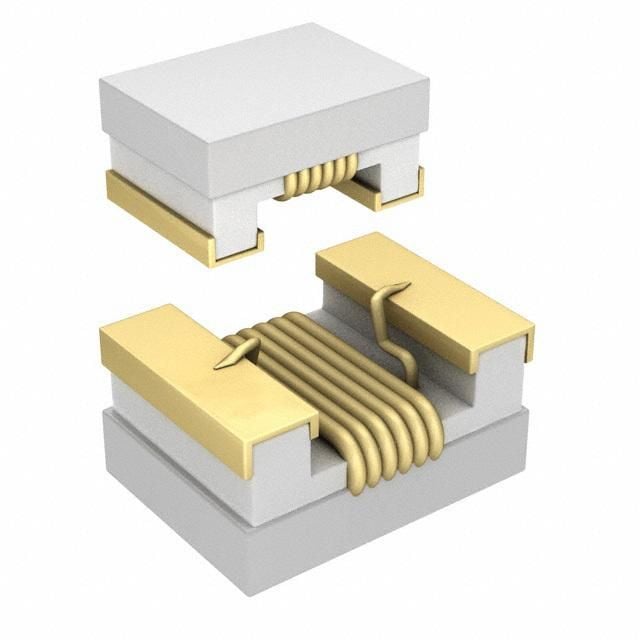

Product Images
