Surface mount wirewound RF chip inductor with 51nH inductance and 5% tolerance. Features a ceramic core, 600mA current rating, and 240mΩ DC resistance. Operates at 200MHz with a Q factor of 32 and a self-resonant frequency of 1.95GHz. Housed in a 0603 (1608 metric) case, this unshielded component is RoHS compliant and suitable for surface mounting.
Frequency200MHz
Package0603
Resistance240mR
Current Rating600mA
Quick Jump:
Technical Specifications
Wurth Electronics 744761151C technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Core Material
Ceramic
Current Rating
600mA
DC Resistance (DCR)
240mR
Depth
1.15mm
Frequency
200MHz
Height
0.9mm
Height - Seated (Max)
0.043inch
Inductance
51nH
Inductance Tolerance
5%
Length
1.65mm
Material
Ceramic
Max DC Current
600mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Q Factor
32
Reach SVHC Compliant
Unknown
Resistance
240mR
RoHS Compliant
Yes
Sample Rate (Hz)
200MHz
Self Resonant Frequency
1.95GHz
Series
WE-KI
Series Resistance
240mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
200MHz
Tolerance
5%
Weight
7.1E-05oz
Width
1.15mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 744761151C Datasheet
Download the complete datasheet for Wurth Electronics 744761151C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

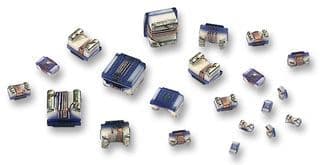

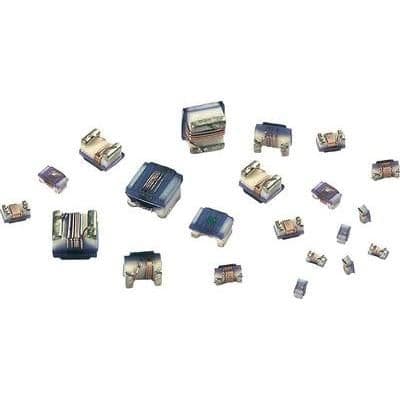

Product Images
