Surface mount wirewound RF chip inductor featuring 15nH inductance with a 5% tolerance, operating up to 250MHz. This ceramic core component offers a current rating of 560mA and a DC resistance of 172mR. Housed in a compact 0402 (1005) package, it boasts a Q factor of 26 and a self-resonant frequency of 3.28GHz, suitable for a wide operating temperature range of -40°C to 125°C.
Frequency250MHz
Package0402
Resistance172mR
Current Rating560mA
Quick Jump:
Technical Specifications
Wurth Electronics 744765115A technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ceramic
Current Rating
560mA
DC Resistance (DCR)
172mR
Depth
0.55mm
Frequency
250MHz
Height
0.5mm
Height - Seated (Max)
0.024inch
Inductance
15nH
Inductance Tolerance
5%
Length
1mm
Material
Ceramic
Max DC Current
560mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
26
Reach SVHC Compliant
Unknown
Resistance
172mR
RoHS Compliant
Yes
Sample Rate (Hz)
250MHz
Self Resonant Frequency
3.28GHz
Series
WE-KI
Series Resistance
172mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
250MHz
Tolerance
5%
Weight
2.3E-05oz
Width
0.55mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 744765115A Datasheet
Download the complete datasheet for Wurth Electronics 744765115A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

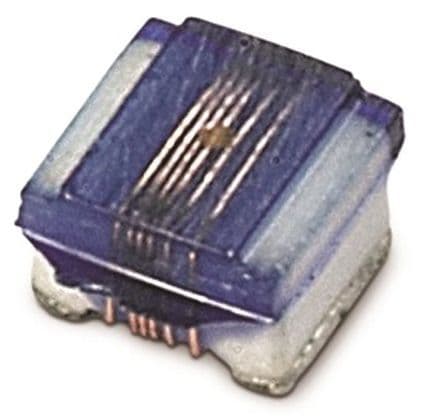

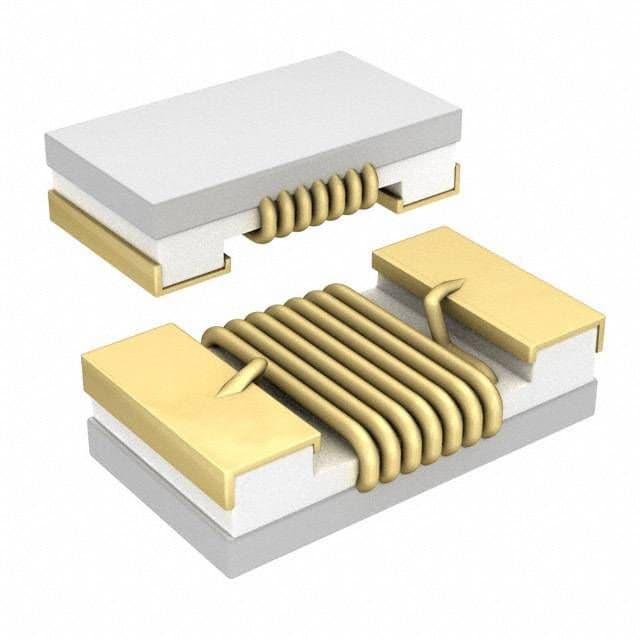

Product Images
