Surface mount wirewound RF chip inductor offering 39nH inductance with a 5% tolerance. Features a ceramic core and unshielded construction, operating at 250MHz with a Q factor of 25. Rated for 320mA maximum DC current and a low 550mΩ DC resistance. Housed in a compact 0402 (1005 metric) case, this component is RoHS compliant and suitable for temperatures from -40°C to 125°C.
Frequency250MHz
Package0402
Resistance550mR
Current Rating320mA
Quick Jump:
Technical Specifications
Wurth Electronics 744765139A technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Ceramic
Current Rating
320mA
DC Resistance (DCR)
550mR
Depth
0.55mm
Frequency
250MHz
Height
0.5mm
Height - Seated (Max)
0.024inch
Inductance
39nH
Inductance Tolerance
5%
Inductor Type
Multilayer
Length
1mm
Material
Ceramic
Max DC Current
320mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Q Factor
25
Reach SVHC Compliant
Unknown
Resistance
550mR
RoHS Compliant
Yes
Sample Rate (Hz)
250MHz
Self Resonant Frequency
2.1GHz
Series
WE-KI
Series Resistance
550mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
250MHz
Tolerance
5%
Weight
2.3E-05oz
Width
0.55mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 744765139A Datasheet
Download the complete datasheet for Wurth Electronics 744765139A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

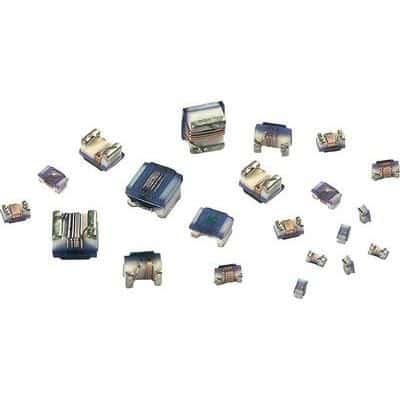

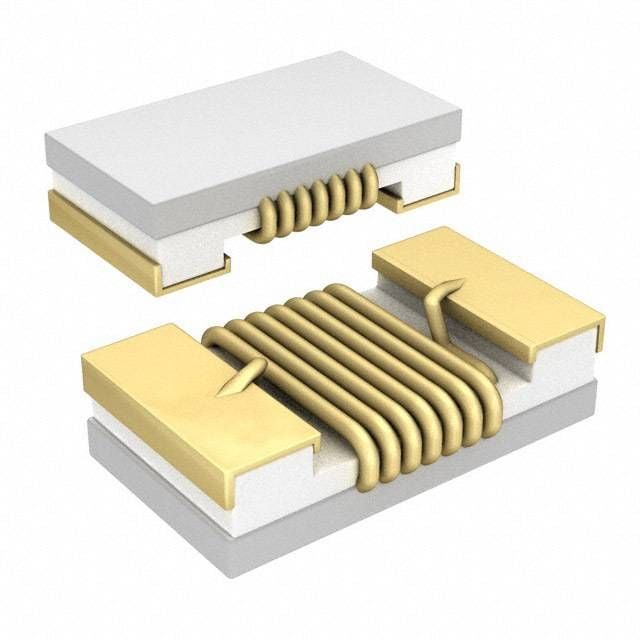

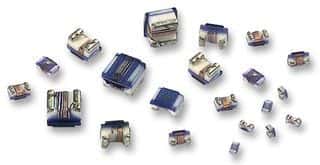

Product Images
