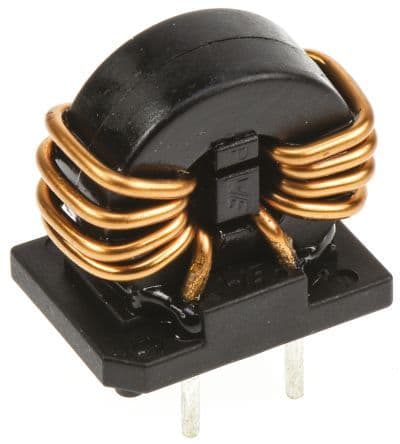

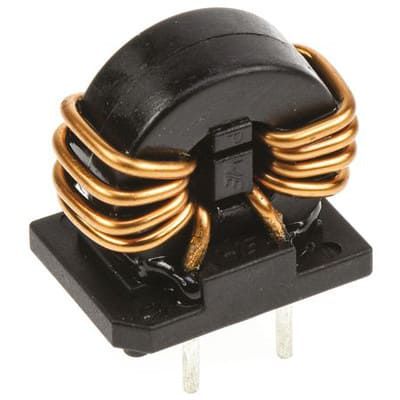

Single-phase EMI filter designed for power line applications. Features a 15A current rating and 250V AC voltage rating. Offers 1mH inductance with a 50% tolerance, operating across a -40°C to 125°C temperature range. Through-hole mounting with a 2-line configuration.
Package300
Current Rating15A
MountingThrough Hole
Inductance1mH
Quick Jump:
Technical Specifications
Wurth Electronics 7448031501 technical specifications.
General
| Package/Case | 300 |
| Current Rating | 15A |
| Height | 25mm |
| Inductance | 1mH |
| Length | 23mm |
| Max Current Rating | 15A |
| Max DC Current | 15A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Lines | 2 |
| Package Quantity | 90 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | WE-CMBNC |
| Shielding | Unshielded |
| Termination | Through Hole |
| Test Frequency | 10kHz |
| Tolerance | 50% |
| Voltage Rating (AC) | 250V |
| Width | 17mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 7448031501 Datasheet
Download the complete datasheet for Wurth Electronics 7448031501 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
