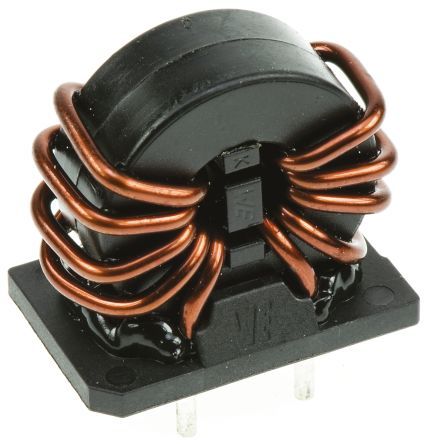

Single-phase EMI filter designed for power line applications, featuring a 250V AC voltage rating and a 15A current capacity. This through-hole mounted component offers 2 lines and 2mH inductance, operating across a wide temperature range of -40°C to 125°C. It is RoHS compliant and packaged in bulk for efficient integration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Wurth Electronics 7448041502 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 300 |
| Current Rating | 15A |
| Height | 32mm |
| Inductance | 2mH |
| Length | 30mm |
| Max Current Rating | 15A |
| Max DC Current | 15A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Lines | 2 |
| Package Quantity | 25 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | WE-CMBNC |
| Shielding | Unshielded |
| Termination | Through Hole |
| Test Frequency | 10kHz |
| Tolerance | 50% |
| Voltage Rating (AC) | 250V |
| Width | 19mm |
| RoHS | Compliant |
