PackageSMD/SMT
Voltage Rating80V
MountingSurface Mount
Inductance750uH
Quick Jump:
Technical Specifications
Wurth Electronics 760301301 technical specifications.
General
Package/Case
SMD/SMT
DC Resistance (DCR)
1.3R
Height
11mm
Height - Seated (Max)
11mm
Inductance
750uH
Isolation Voltage
2.5kV
Length
10.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
350
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WE-GDT
Termination
SMD/SMT
Transformer Type
GATE DRIVE
Turns Ratio
1:1.1
Voltage Rating
80V
Width
10.5mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 760301301 Datasheet
Download the complete datasheet for Wurth Electronics 760301301 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

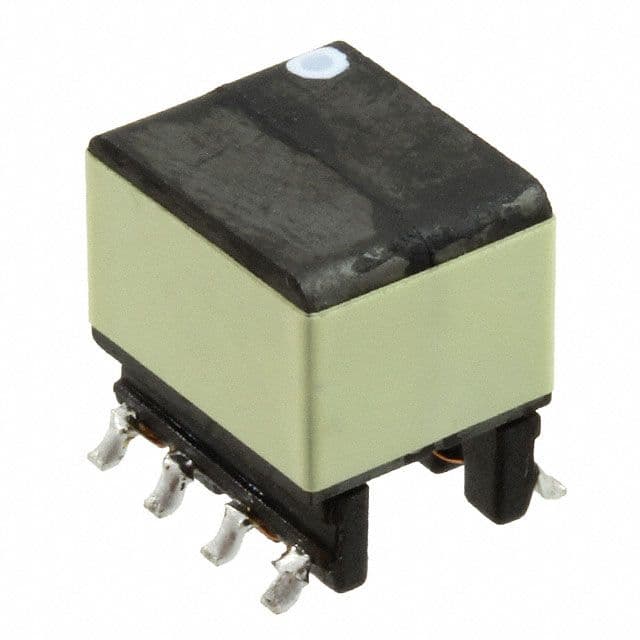

Product Images
