Package4832
Resistance330mR
Current Rating1.55A
Inductance12uH
Quick Jump:
Technical Specifications
Wurth Electronics 760308103203 technical specifications.
General
Package/Case
4832
Current Rating
1.55A
DC Resistance (DCR)
550mR
Height
1mm
Inductance
12uH
Inductance Tolerance
10%
Length
48mm
Logic Function
Receiver
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Package Quantity
192
Packaging
Bulk
Q Factor
21
Reach SVHC Compliant
Unknown
Resistance
330mR
RoHS Compliant
Yes
Saturation Current
3A
Self Resonant Frequency
20MHz
Series
1
Tolerance
10%
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 760308103203 Datasheet
Download the complete datasheet for Wurth Electronics 760308103203 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

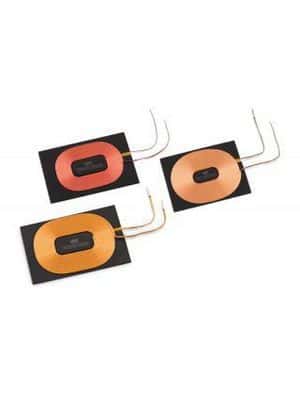

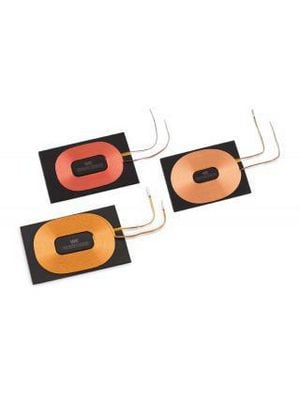

Product Images
