SMT standoff, steel, round female thread, M3 thread size, 6mm width, 4mm body length, 4mm overall length, and 0.236 inch outside diameter. Designed for surface mount technology (SMT) with tin plating, this component operates within a temperature range of -55°C to 150°C. Packaging is provided on tape and reel for automated assembly.
PackageSMD/SMT
MountingExternal
Quick Jump:
Technical Specifications
Wurth Electronics 9774040360R technical specifications.
General
Body Length
4mm
Package/Case
SMD/SMT
Length
0.213inch
Material
Steel
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
External
Outside Diameter
0.236inch
Packaging
Tape and Reel
Plating
Tin
Reach SVHC Compliant
Unknown
Series
WA-SMSI
Threaded/Unthreaded
Threaded
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Wurth Electronics 9774040360R Datasheet
Download the complete datasheet for Wurth Electronics 9774040360R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

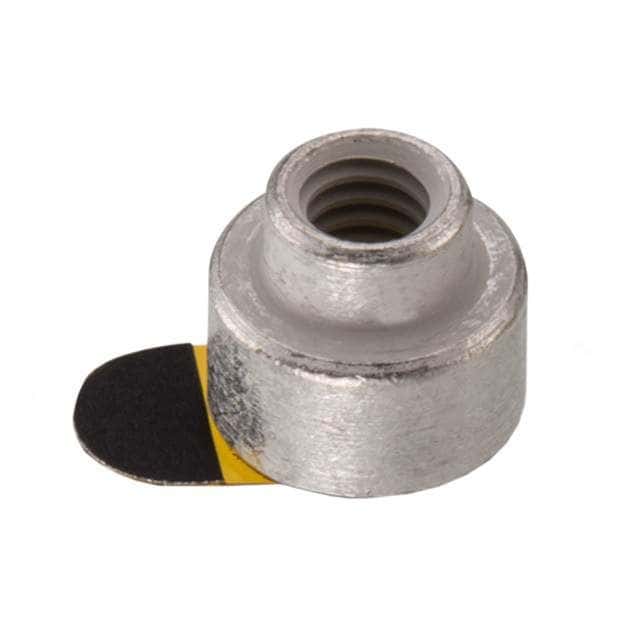

Product Images
