42W AC/DC external power supply, desktop mount, featuring dual outputs: 5V at 5A and 12V at 2A. Offers 80% efficiency and operates from 90-264V AC input. Approvals include UL, CSA, and CE. Dimensions are 4.4 inches (L) x 2.8 inches (W) x 1.4 inches (H) with a 1.22m lead length and a 5-pin DIN output connector. RoHS compliant with a maximum operating temperature of 60°C.
MountingDesktop
PolarityPositive
Quick Jump:
Technical Specifications
XP Power AEH45UM23 technical specifications.
General
Approvals
UL, CSA, CE
Current - Output 1
5A
Current - Output 2
2A
Efficiency
80%
Height
1.4inch
Lead Length
1.22m
Length
4.4inch
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
90V
Max Input Voltage
264V
Min Input Voltage
90V
Max Operating Temperature
60°C
Max Output Current
2A
Max Output Power
42W
Max Power Dissipation
49W
Mount
Desktop
Number of Outputs
2
Output Connector
DIN, 5 Pin
Output Current
2A
Output Voltage
12V
Polarity
Positive
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AEH45 (45W)
Voltage - Output 1
5V
Voltage - Output 2
12V
Width
2.8inch
Compliance
RoHS
Not Compliant
Datasheet
XP Power AEH45UM23 Datasheet
Download the complete datasheet for XP Power AEH45UM23 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

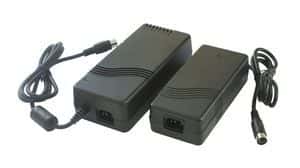

Product Images
