5W AC/DC power supply, single output, delivering 12V at 410mA. Features 82% efficiency, OVP and SCP protection, and operates across an 85-264V AC input range. This through-hole mount component has a compact form factor with dimensions of 25.4mm (width) x 25.4mm (depth) x 15.24mm (height) and an operating temperature range of -25°C to 70°C. RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
XP Power ECE05US12 technical specifications.
General
Current - Output 1
410mA
Depth
25.4mm
Efficiency
82%
Features
OVP, SCP
Height
15.24mm
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
85V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Current
410mA
Max Output Power
5W
Max Power Dissipation
5W
Mount
Through Hole
Nominal Output Voltage
12V
Number of Outputs
1
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ECE (5W)
Voltage - Output 1
12V
Weight
0.035lb
Width
25.4mm
Compliance
RoHS
Compliant
Datasheet
XP Power ECE05US12 Datasheet
Download the complete datasheet for XP Power ECE05US12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

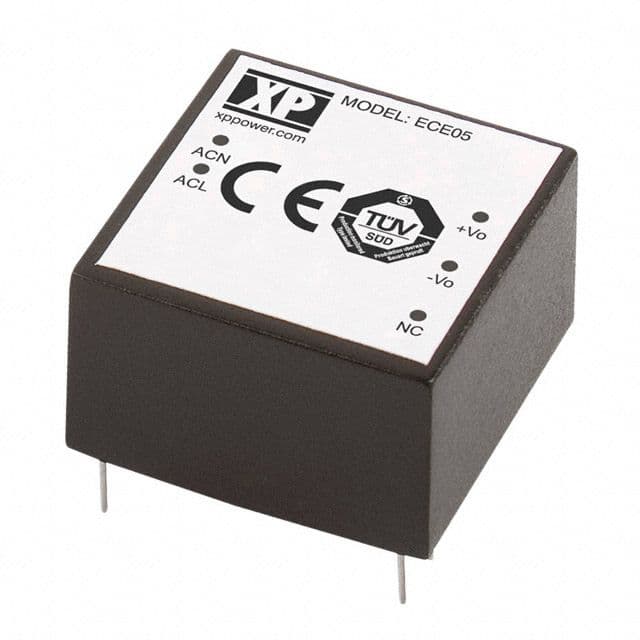

Product Images
