Technical Specifications
XP Power ECE40US24-SD technical specifications.
General
Current - Output 1
1.67A
Efficiency
85%
Height
1.12inch
Isolation Voltage
3kV
Length
3.78inch
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
85V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Current
1.67A
Max Output Power
40W
Max Power Dissipation
40W
Mount
DIN Rail
Nominal Output Voltage
24V
Number of Outputs
1
Output Power
40.1W
Package Quantity
1
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ECE
Voltage - Output 1
24V
Width
1.57inch
Compliance
RoHS
Compliant
Datasheet
XP Power ECE40US24-SD Datasheet
Download the complete datasheet for XP Power ECE40US24-SD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

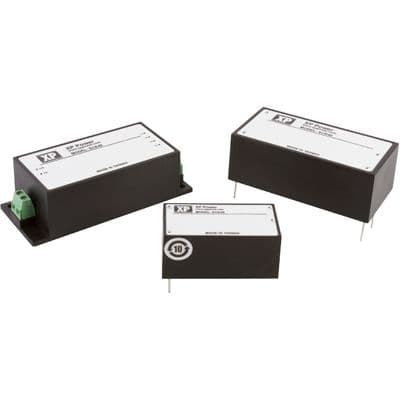

Product Images
