Chassis mount AC/DC power supply, 15W maximum output power, featuring three outputs: 5V at 2A, 12V at 200mA, and -12V at 200mA. This enclosed power supply operates from 85-264V AC input, offers 3kV isolation voltage, and achieves 82% efficiency. Designed for panel mounting, it operates within a temperature range of -20°C to 70°C. Dimensions are 3.3 inches in length, 1.36 inches in width, and 1.04 inches in height.
MountingChassis Mount, Panel
Power14.8W
Quick Jump:
Technical Specifications
XP Power ECL15UT02-S technical specifications.
General
Current - Output 1
2A
Current - Output 2
200mA
Current - Output 3
200mA
Efficiency
82%
Height
1.04inch
Isolation Voltage
3kV
Length
3.3inch
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
85V
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Output Current
500mA
Max Output Power
15W
Max Power Dissipation
15W
Mount
Chassis Mount, Panel
Number of Outputs
3
Output Power
14.8W
Package Quantity
1
Reach SVHC Compliant
Unknown
Series
ECL
Voltage - Output 1
5V
Voltage - Output 2
12V
Voltage - Output 3
-12V
Width
1.36inch
Compliance
RoHS
Compliant
Datasheet
XP Power ECL15UT02-S Datasheet
Download the complete datasheet for XP Power ECL15UT02-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

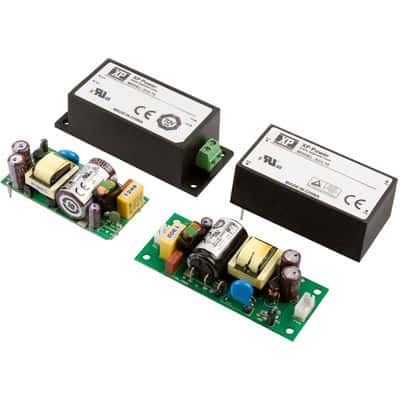

Product Images
