100W AC/DC power supply, single output, 33V at 3A. Features 90-264V AC input, 4kV isolation voltage, and 80% efficiency. Operates from 0°C to 70°C, with chassis mount. RoHS compliant.
MountingChassis Mount, Chassis
Power100W
Quick Jump:
Technical Specifications
XP Power ECM100US33 technical specifications.
General
Approvals
CE, CB
Current - Output 1
3A
Efficiency
80%
Height
1.2inch
Isolation Voltage
4kV
Length
4inch
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
90V
Max Input Voltage
264V
Min Input Voltage
90V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
3A
Max Output Power
99W
Max Power Dissipation
100W
Mount
Chassis Mount, Chassis
Nominal Output Voltage
33V
Number of Outputs
1
Output Power
100W
Package Quantity
1
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ECM
Voltage - Output 1
33V
Width
2inch
Compliance
RoHS
Compliant
Datasheet
XP Power ECM100US33 Datasheet
Download the complete datasheet for XP Power ECM100US33 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

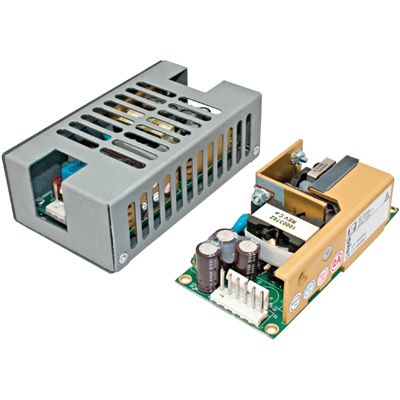

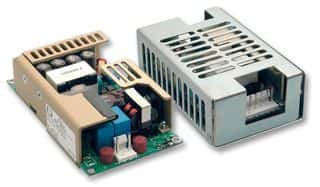

Product Images
