40W AC/DC power supply, single output, 12V at 3.5A. Features 4kV isolation voltage and 80% efficiency. Operates from 90-264V AC input, with a frequency of 63Hz. Designed for chassis mounting, with an operating temperature range of 0°C to 70°C. RoHS compliant.
Frequency63Hz
MountingChassis Mount, Chassis
Power40W
Quick Jump:
Technical Specifications
XP Power ECM40US12 technical specifications.
General
Current - Output 1
3.5A
Efficiency
80%
Frequency
63Hz
Input Current
600mA
Isolation Voltage
4kV
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
90V
Max Input Voltage
264V
Min Input Voltage
90V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
3.5A
Max Output Power
40W
Max Power Dissipation
40W
Mount
Chassis Mount, Chassis
Nominal Output Voltage
12V
Number of Outputs
1
Output Power
40W
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ECM (40W)
Voltage - Output 1
12V
Compliance
RoHS
Compliant
Datasheet
XP Power ECM40US12 Datasheet
Download the complete datasheet for XP Power ECM40US12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

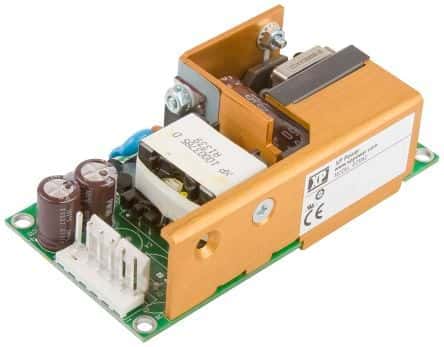

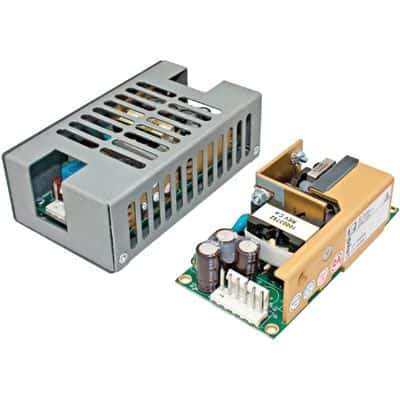

Product Images
