Board mount DC/DC converter, 3W output power, 15V nominal output voltage, 200mA maximum output current. Features 1kV isolation voltage, 84% efficiency, and a wide operating temperature range of -40°C to 85°C. Input voltage range is 4.5V to 5.5V DC. Packaged in a SIP case for through-hole PCB mounting.
PackageSIP
MountingThrough Hole, PCB
Power3W
Quick Jump:
Technical Specifications
XP Power IR0515SA technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 200mA |
| Depth | 19.5mm |
| Efficiency | 84% |
| Height | 0.39inch |
| Isolation Voltage | 1kV |
| Length | 0.77inch |
| Max Input Voltage (DC) | 5.5V |
| Min Input Voltage (DC) | 4.5V |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Power | 3W |
| Max Power Dissipation | 3W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | 15V |
| Number of Outputs | 1 |
| Output Power | 3W |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | IR |
| Voltage - Output 1 | 15V |
| Width | 0.28inch |
Compliance
| RoHS | Not Compliant |
Datasheet
XP Power IR0515SA Datasheet
Download the complete datasheet for XP Power IR0515SA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

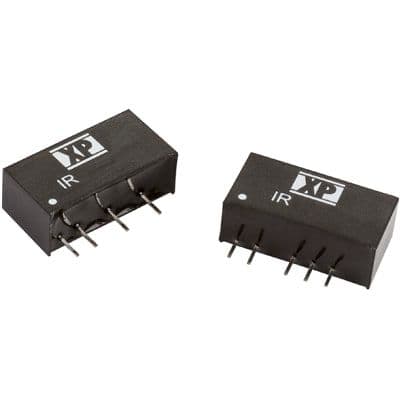

Product Images
