2W DC-DC regulated power supply module, featuring a single 9V output at 222mA. This hybrid, board-mount converter operates from a 9V to 18V DC input, with a nominal supply voltage of 12V. Offering 1.5kV isolation voltage and 76% efficiency, it is housed in an SMD-16/6 package for surface mounting. The module includes short-circuit protection (SCP) and operates within a temperature range of -40°C to 85°C.
PackageSMD/SMT
MountingSurface Mount, PCB
Power2W
Quick Jump:
Technical Specifications
XP Power ISP1209A technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
222mA
Depth
23.86mm
Efficiency
76%
Features
SCP
Height
0.31inch
Isolation Voltage
1.5kV
Length
0.94inch
Max Input Voltage (DC)
18V
Min Input Voltage (DC)
9V
Max Input Voltage
18V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
222mA
Max Output Power
2W
Max Power Dissipation
2W
Mount
Surface Mount, PCB
Nominal Output Voltage
9V
Number of Outputs
1
Operating Supply Voltage
12V
Output Current
222mA
Output Power
2W
Output Voltage
9V
Package Quantity
8
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ISP
Voltage - Output 1
9V
Width
0.54inch
Compliance
RoHS
Compliant
Datasheet
XP Power ISP1209A Datasheet
Download the complete datasheet for XP Power ISP1209A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

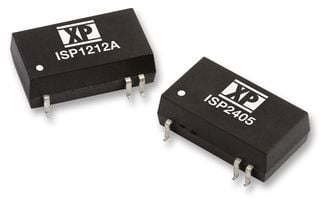

Product Images
