2W DC-DC regulated power supply module, featuring a single 12V output at 167mA. This hybrid, board-mount converter offers 1.5kV isolation and operates from a 9V to 18V DC input range. Packaged in an SMD-16/6 for surface mounting, it boasts 78% efficiency and a wide operating temperature range of -40°C to 85°C. Short circuit protection (SCP) is included.
PackageSMD/SMT
MountingSurface Mount, PCB
Power2W
Quick Jump:
Technical Specifications
XP Power ISP1212A technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
167mA
Depth
23.86mm
Efficiency
78%
Features
SCP
Height
0.31inch
Isolation Voltage
1.5kV
Length
0.94inch
Max Input Voltage (DC)
18V
Min Input Voltage (DC)
9V
Max Input Voltage
18V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
167mA
Max Output Power
2W
Max Power Dissipation
2W
Mount
Surface Mount, PCB
Nominal Output Voltage
12V
Number of Outputs
1
Operating Supply Voltage
12V
Output Current
167mA
Output Power
2W
Output Voltage
12V
Package Quantity
8
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ISP
Voltage - Output 1
12V
Width
0.54inch
Compliance
RoHS
Compliant
Datasheet
XP Power ISP1212A Datasheet
Download the complete datasheet for XP Power ISP1212A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

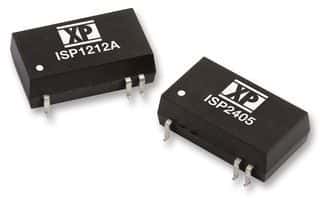

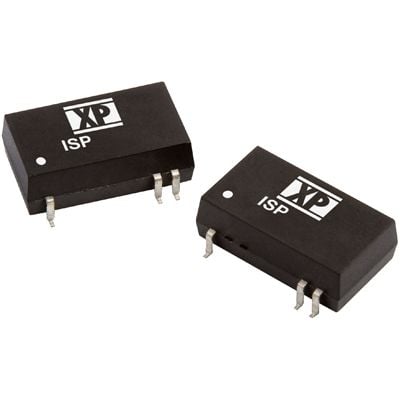

Product Images
