2W, dual output, regulated DC-DC converter module for board mounting. Features 5V and -5V outputs, each with 200mA maximum current. Operates from an 18V to 36V DC input, with a nominal input of 24V. Offers 1.5kV isolation voltage and surface mount packaging. Includes short-circuit protection (SCP) and operates across a -40°C to 85°C temperature range.
PackageSMD/SMT
MountingSurface Mount, PCB
Power2W
Quick Jump:
Technical Specifications
XP Power ISP2405 technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
200mA
Current - Output 2
200mA
Depth
23.86mm
Efficiency
74%
Features
SCP
Height
0.31inch
Isolation Voltage
1.5kV
Length
0.94inch
Max Input Voltage (DC)
36V
Min Input Voltage (DC)
18V
Max Input Voltage
36V
Min Input Voltage
18V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Power
2W
Max Power Dissipation
2W
Mount
Surface Mount, PCB
Nominal Output Voltage
-5V
Number of Outputs
2
Operating Supply Voltage
24V
Output Current
200mA
Output Power
2W
Output Voltage
5V
Package Quantity
8
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ISP
Voltage - Output 1
5V
Voltage - Output 2
-5V
Width
0.54inch
Compliance
RoHS
Compliant
Datasheet
XP Power ISP2405 Datasheet
Download the complete datasheet for XP Power ISP2405 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

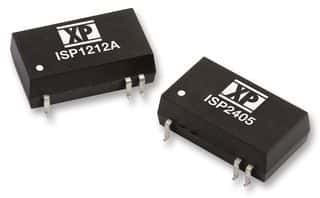

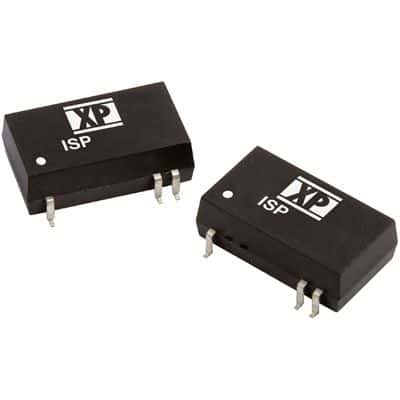

Product Images
